Cup lock Scaffolding System
The Cup lock Scaffolding System is a versatile and high-load-capacity scaffolding solution used in construction, demolition, and maintenance projects. Its defining feature is a unique node point connection that allows for up to four horizontal members to be securely joined to a vertical member with a single action, eliminating the need for traditional nuts, bolts, or wedges.

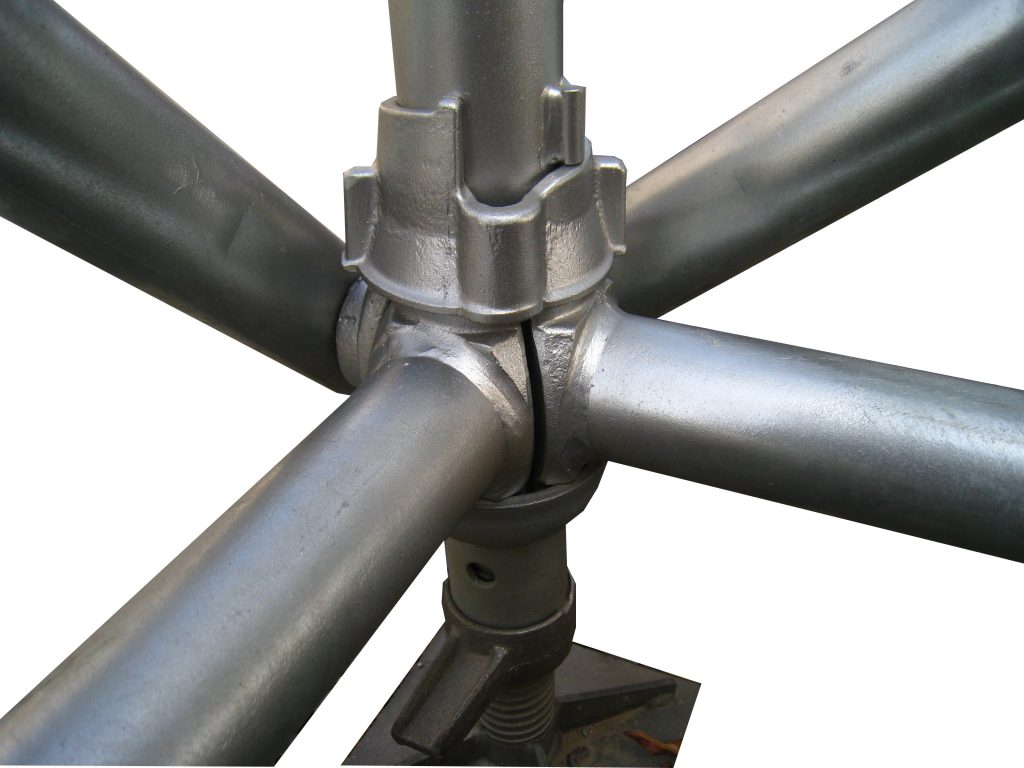

This efficient locking mechanism consists of a fixed lower cup and a sliding upper cup. The forged blade ends of the horizontal members (ledgers and transoms) are placed into the lower cup. The upper cup is then slid down, rotated, and tightened with a hammer blow, creating a rigid and positive connection. This design significantly speeds up assembly and dismantling, while maintaining a high level of safety. The system is fully compatible with a complete range of safety accessories.
Advantages of the Cuplock Scaffolding System
The Cuplock Scaffolding System offers numerous benefits that make it a preferred choice for various projects.
- Design and Technical Support: The system is fully supported by CAD (Computer-Aided Design) for precise planning and efficient implementation. This is backed by comprehensive in-depth technical support.
- High Load-Bearing Capacity: It’s exceptionally strong, with each leg capable of supporting a load of up to 40 kN.
- Efficiency: The system is designed for rapid assembly, leading to significant savings in erection time and reduced labor costs due to its simple, modular design and systemized bracing.
- Versatility: Its design allows it to be used for both support and access applications, providing a versatile solution for a wide range of construction, demolition, and maintenance needs.
- Ease of Use: It is simple to erect, making it accessible to work crews and further contributing to project efficiency.
Confidence Through Technical and CAD Support
Our extensive experience with the Cuplock Scaffolding System on a wide variety of projects, both within Saudi Arabia (KSA) and internationally, instills absolute confidence in its use. We provide exceptional technical and design support, which includes a sophisticated Computer-Aided Design (CAD) facility. This allows us to offer you the best possible technical support, ensuring the system’s performance and your peace of mind on every project.
Cuplock Standards: Vertical Components
Cuplock standards are the primary vertical components of the scaffolding system. They are made from 48.3mm outer diameter (O.D.) tubes.
Key Features
- Cup Joints: Each standard has cup joints spaced at 500mm intervals. The fixed bottom cups are welded, while the captive sliding top cups are engineered to withstand rigorous use on-site.
- Variety of Lengths: Standards are available in various lengths, typically ranging from 1.0 meter to 3.0 meters.

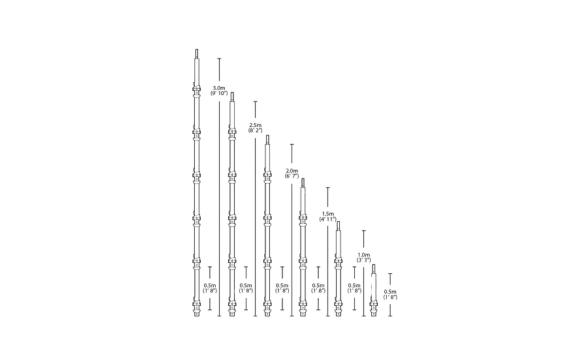

Available Standard Sizes
| 3.00 Mtr | 2.80 Mtr | 2.50 Mtr |
| 2.30 Mtr | 2.00 Mtr | 1.80 Mtr |
| 1.50 Mtr | 1.30 Mtr | 1.00 Mtr |
