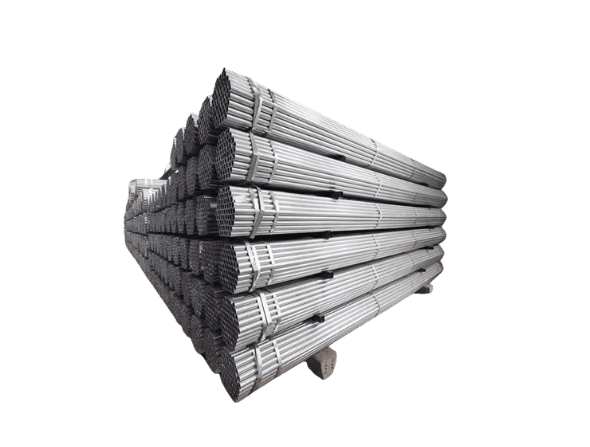

GI Scaffolding Tube EN 10219 Standard Embossed
| Nominal outside diameter | 48.3 MM |
|---|---|
| Nominal Wall thickness | 3.20mm |
| Specification | eN10219 in accordance with ASTM A 370 & 500 |
| Weight | 21.35 Kg |
| Theoretical Thickness Tolerance | +/- 6% |
| Type of testing & Method | Tensile test with yield and Flattening test |
| Maximum Yield Load 1 | 6.00 KN |
| Maximum Tension Load | 18.80 KN |
GI Scaffolding Tube BS 1139 / EN 39 Standard Embossed
| Nominal outside diameter | 48.3mm |
|---|---|
| Nominal Wall thickness | 4.00 mm |
| Type of testing & Method | Tensile test with yield and Flattening test |
| Specification | BS1139 Part 1: Section 1.1 in accordance with ASTM A 370 & 500 |
| Theoretical Weight | 25.70 Kg |
| Thickness Tolerance | +/- 6% |
| Maximum Yield Load | 20.90 KN |
| Maximum Tension Load | 23.70 KN |
